3R70103AL

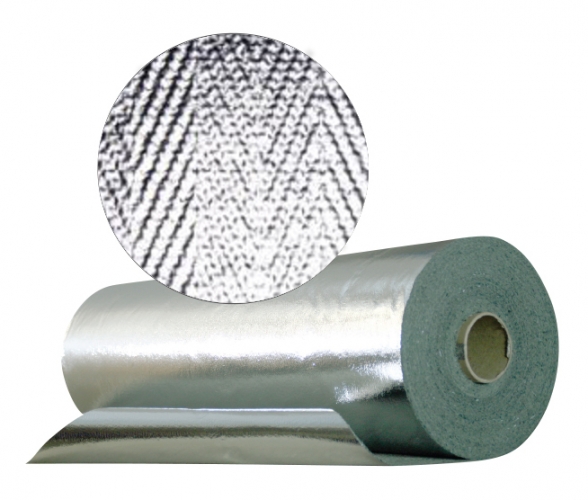

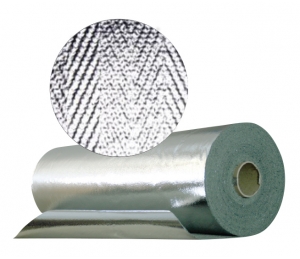

PFR RAYON ALUMINIZED FABRIC
This fabric incorporates a five-layer structure that consist of an outer layer of aluminum, protective film, a second layer of aluminum, heat stable adhesive and the base fabric such as rayon for maximum reflectivity and durability.
Downloads
Applications
Normally used to create garments worn by firefighters and industrial workers operating in high-heat environments. This fabric potential is limitless du to the unique insulation and heat reflective properties of material.
Specifications
Technical Data
| Weight | 19.0 oz/yd² |
|---|---|
| Thickness | 0.035" |
| Breaking strength, ASTM5034 | Warp: 350 lbs, Weft: 180 lbs |
| Tear Strength, ASTM D1424 | Warp: 35 lbs, Weft: 35 lbs |
| Flame Resistance, ASTM D6413 | |
| After flame | 2.0 sec |
| Char length | 3.0 in |
| Radiant Reflectivity, MIL-C-24929A | 25.0 sec |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
