INY601
Protective clothing

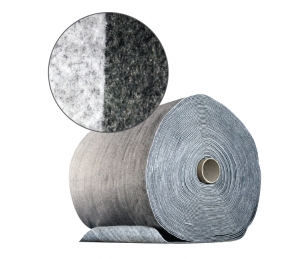

The INY 601 is made of two thicknesses of organic felt. On one side of the fabric, the aramid fiber helps protect from high temperatures and on the other side the viscose fiber improves its flexibility and comfort.
Downloads
Applications
This fabric is recommended for lining mitts and gloves that are intended for the handling of hot objects. It can also be used for the protection of small quantities of welding sparks.
Specifications
Technical Data
| Weight | 600 g/m² |
|---|---|
| Thickness | 4.00 mm |
| Breaking strength ISO5081 : 1977 | Warp: 484.1 N / 50mm, Weft: 629.8 N / 50mm |
| Elongation at break ISO5081: 1977 | Warp: 13.28%, Weft: 15.66% |
| Flammability test to EN532 : 1994 | |
| 10 sec. flame applied to face of vertical sample | Negative reaction to flame |
| Thermal test to EN407 : 1994 | |
| Contact Heat EN702 | Level 2 |
| Convective Heat EN367 | Level 4 |
| Radiant Heat EN366 | Level 1 |
| Molten Metal Splash | |
| Small splashes EN348 | Level 4 |
| Large Quantities EN373 | Level 4 |
| Abrasion Resistance EN388 | Level 1 |
| Tear Resistance EN388 | Level 3 |
| Fabric care | Can be laundered at low temperature without bleaches or oxidizing agents |
| Temperature | 230°C (445°F) |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
