3R416

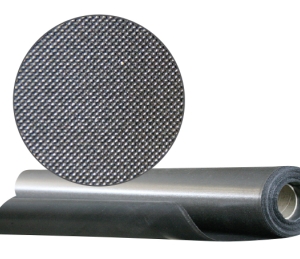

The 3R416 is a base of para-aramid cloth coated with polyurethane on each side. It has an excellent resistance to particles projections, abrasive scraps or powders, oils and temperature up to 300°F (150°C). This fabric has a great folding memory and an excellent weldability on PVC. It is alo resistant to various chemicals (ASTM1, Skydrol, MEC, alcohol).
Downloads
Applications
The 3R416 is ideal for equipment protection applications. He is recommended for big size bellows covers. Its resistance to abrasive materials, impacts and cutting oil allow its use in harsh environment.
Specifications
Technical data
Color | Grey/Back |
---|---|
Width | 61" (1550 mm) |
Weight | 400 g/m² ± 20g (11.8 oz./yd² ± 0.6) |
Thickness | 0.35 mm ± 0.03 |
Temperature | 300°F (150°C) |
Tear strength (ISO 4674-2) | Warp: ⩾ 15 daN, Weft: ⩾ 10 daN |
Flexural resistance | Warp: ⩾ 20 000, Weft: ⩾ 20 000 |
Watertightness | ⩾ 0,2 Bar |
Protection against flame (ISO 15025) | I3 |
Thermic adhesion on stiff PVC | ⩾ 6 daN |
