3R4090

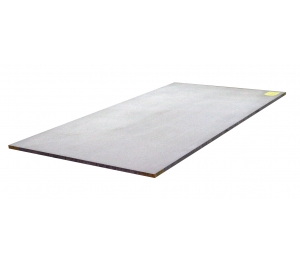

Marinite CS85
This CS85 Marinite was developed to be a high temperature replacement for asbestos Transite. It offers the highest strength and electrical resistance combined with minimal shrinkage.
Downloads
Applications
Applications include platen press insulation, foundry core and blow plates, induction furnace casings, electrical resistance insulation, hot glass handling and numerous others.
Specifications
Technical Data
| Temperature | 980°C (1800°F) |
|---|---|
| Density | 85 pcf (1362 kg/m³) |
| Moduls of Rupture (Flexural Strength) | 3000 psi (210 kg/cm²) |
| Ultimate load | 10300 psi (724 kg/cm²) |
| Load @ 5% deformation | 6400 psi (450 kg/cm²) |
| Moisture Content (normal), % of dry weight | 1.0 |
| Thermal Conductivity (Btu-in/ft², hr, °F) | 400°F: 2.13, 800°F: 1.94, 1000°F: 2.01 |
| Thermal Conductivity (W/m°K) | 204°C: 0.31, 427°C: 0.28, 538°C: 0.29 |
| Shrinkage 24 h at 1600°F | Linear: 0.24%, Thickness: 2.0% |
| Arc Resistance (ASTM D495) | 304 sec |
| Volume Resistivity (ASTM D257) | 4.52 X (10^12) ohm-cm |
| Dielectric Strength (ASTM D495) | 61 v/mil |
| Screw Holding Strength @ 7/8" penetration | 875 lbs (397 kg) |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
