NEMA CE

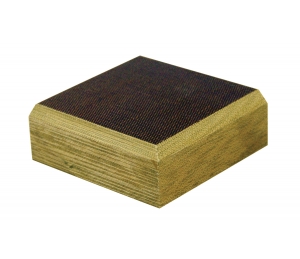

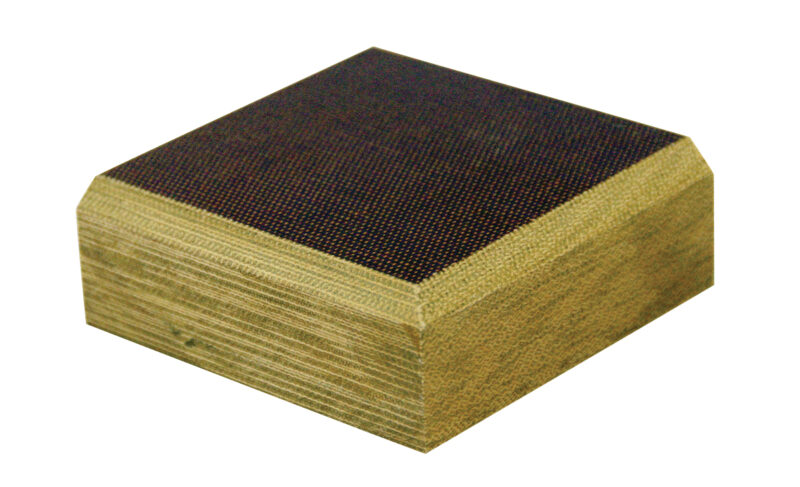

The CE grade is a cotton canvas and phenolic resin laminate that provides excellent electrical insulating properties and superior moisture resistance.
Downloads
Applications
This material is ideal for machining gears, pulleys, rollers, guides and control boards that must be electrically insulated.
Specifications
Technical Data
| Specific gravity | 1.37 |
|---|---|
| Tensile Strength (psi) | 11 000 / 9 000 |
| Compressive Strength (psi) | 34 000 |
| Flexural Strength (psi) | 17.000 |
| Hardness, M Scale | 100 |
| Bonding Strength | 1 700 |
| Shear strength (psi) | 14.000 |
| Electric strength - Volt /mil | 550 |
| Flammability rating | HB |
| Température | 125 °C (257 °F) |
| Coeff. Thermal EXP. In/ln/°C x 10¯6 | 20 |
| Water absorption % | 2.0 |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
