1030HT
1030 ht

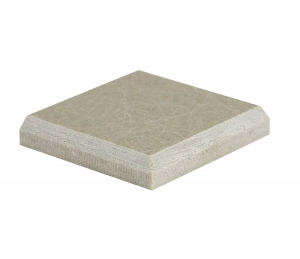

The 1030HT fiberglass reinforced polyester sheet is manufactured under high heat and pressure in matched metal moulds. This laminate provides excellent mechanical and electrical properties for service temperatures up to 428°F. Testing shows that after 2000 hours of exposure at 390°F, the flexural strength is reduced by 10%, and the dielectric strength is reduced by 30% to 240 VPM.
Downloads
Applications
This material is excellent for use in applications where high temperature property retention products are required, such as dry transformers.
Specifications
Technical Data
| Specific Gravity (ASTM D-792) | 1.62df |
|---|---|
| IZOD Impact strength (Notch) (ASTM D-256) | 8ft-lb/in |
| Comp. Strength (psi) (ASTM D-790) | 20 000 |
| Flexural Strength (ASTM D-790) | 22 000psi |
| Barcol hardness (ASTM D-2583) | 45-55 |
| Dielectric strength (ASTM D-149) | 350volts/mil |
| Arc Resistance (ASTM D-495) | 184 |
| Dissipation factor @ 60 Hz (ASTM D-149) | 0.05 |
| Dissipation factor @ 1 MHz (ASTM D-149) | 0.03 |
| Dielectric constant @ 60 Hz (ASTM D-150) | 5.0 |
| Dielectric constant @ 1 MHz (ASTM D-150) | 4.3 |
| Flammability rating (UL 94) | 94HB |
| Temperature | 220°C (390°F) |
| Water absorption % - 24hrs (ASTM D-229) | 0.337 |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
