1050
1050

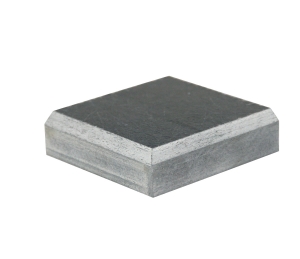

The 1050 is a high strength and high temperature electrical grade sheet which is manufactured under high heat and pressure in matched metal moulds. This results in a laminate with excellent mechanical and electrical properties.
Downloads
Applications
This sheet is designed for use in the manufacturing of motor wedges.
Specifications
Technical Data
| Specific gravity (ASTM D-792) | 1.82 |
|---|---|
| Tensile strength (ASTM D-638) | 16 500psi |
| Flexural strength (ASTM D-790) | 33 000psi |
| Compressive strength (ASTM D-695) | 52 000psi |
| Shear Strength (ASTM D732) | 18 000psi |
| Flammability (UL 94) | HB |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
