Description

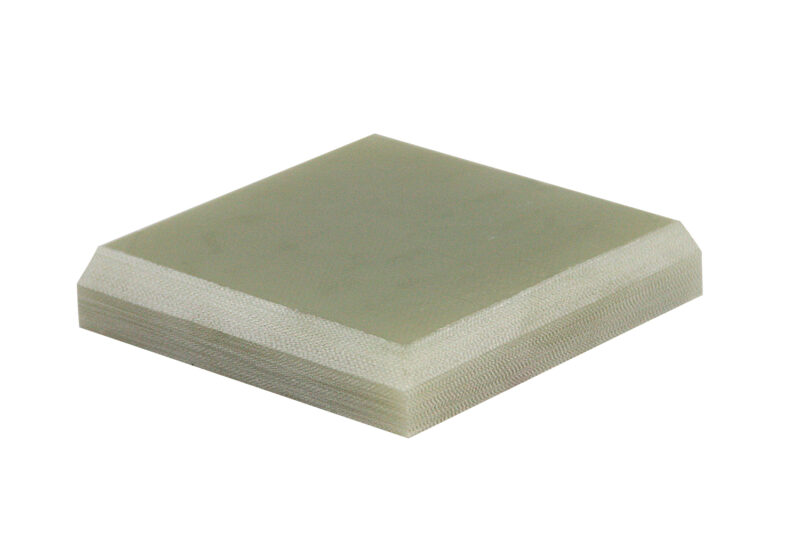

G10/FR4 is a woven glass and brominated epoxy laminate offering excellent electrical properties in both dry and humid conditions. This material has very good mechanical strength and impact resistance. The G10/FR4 is a flame retardant grade and it maintains more than 25% of its flexural strength at 266°F operating temperatures while preserving all of its electrical properties. This material meets the requirements of the NEMA FR4 and MIL-I-24768/27 specifications.
FR4 is very similar to G10. The main difference is that FR4 contains flame-retardant additives that enable it to meet fire-resistance requirements. In other words, FR4 can be considered as G10 with flame-retardant properties.
Applications
This material is suitable for a variety of applications for power generation industries such as terminal boards, lapping carriers, and many other machined parts. It is available in sheet, tube and rod form.
Specifications
| Specific gravity | 1.85 |
| Tensile strength | 66 000 psi (455 MPa) |
| Flexural strength | 38 000 psi (262 MPa) |
| Compressive strength | 60 000 psi (413 MPa) |
| Hardness | 115 M Scale |
| Bonding strength | 2 300 psi (15 MPa) |
| Shear strength | 21 500 psi (15 MPa) |
| Electric strength | 800 V/MIL - Cond A |
| Flammability rating | 94V-O |
| Max Oper. Max. | 140°C (284°) |
| Coeff. Thermal EXP. | 1.00 In/ln/°C x 10^-5 |
| Water absorption - 24hrs | 0.10 % |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
