Durlon® 9000
Durlon®

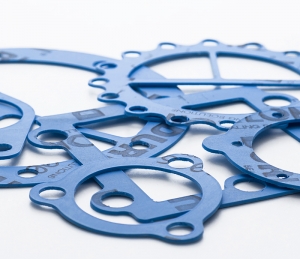

The Durlon® 9000 is manufactured from inorganic filler and pure PTFE resin. The Durlon® 9000 is a perfect sealing material in presence of aggressive chemical products. This material is suitable for use in steel flanges. It cuts easily, it is flexible and separates cleanly from flanges after use. erties.
Downloads
Applications
- Liquid chlorine
- Caustics
- Gaseous oxygen
- Industries: Chemical, Pulp and paper, Food and beverage
Specifications
Technical Data
| Color | Blue |
|---|---|
| Temperature | Minimum: -212°C(-350°F), Continuous: 260°C(500°F), Short term: 271°C(520°F) |
| Pressure | 1500 psi |
| Density | 2.2g/cc (138lbs/ft3) |
| Compressibility | 8-16% |
| Recovery | 40% |
| Creep relaxation | 30% |
| Tensile strength | 2000 psi |
| Nitrogen Sealability (ASTM 2378) | 0.01cc/min |
| Gasket factor m | 1/16": 2.2, 1/8": 4.6 |
| Gasket factor y | 1/16": 1937psi, 1/8": 1639psi |
| Gasket factor Gb | 1/16": 639psi, 1/18" 495psi |
| Gasket factor a | 1/16": 0.220, 1/8": 0.262 |
| Gasket factor Gs | 1/16": 55psi, 1/8": 65psi |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
