Durlon® HT1000
Durlon®

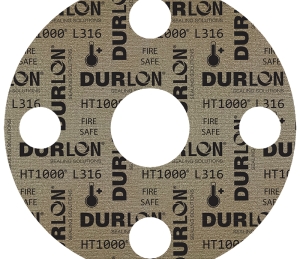

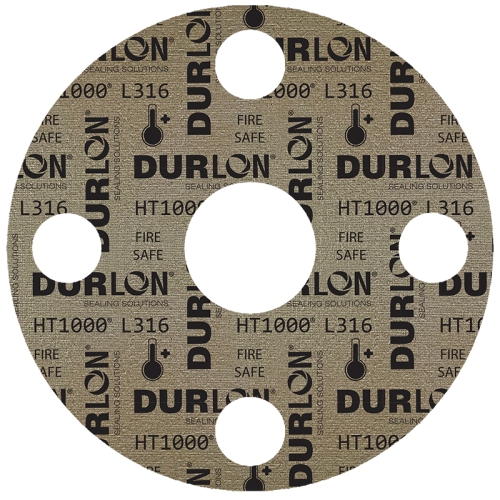

Made from phlogopite mica paper, Dulrlon HT1000 is impregnated with less binder than other, which gives it superior performances to high temperatures (up to 1000°C). It is also available with 0.002” thick stainless steel carrier (S316) and 0.004” perforated stainless steel carrier (T316).
Downloads
Applications
- Heat exchangers
- Exhaust manifolds
- Refinery
- Power generation
- Chemical industries
Specifications
Technical Data
| Color | Metallic Green-Gold |
|---|---|
| Temperature | -55°C to 1000°C (-67°F to 1832°F) |
| Pressure | S90: 73psi. S316/T316: 580psi |
| Density | 119 lb/ft³ (1.9 g/cm³) |
| Compressibility (ASTM F36A) | 18-25% |
| Recovery (ATM F36 J) | 39-43% |
| Tensile strentgh (ISO 178) | 2900psi |
| Weight loss @ 800°C (DIN 52911) | 5% |
| Thermal conductivity (DIN 52612), W/(m.K) | @200°C: 0.20, @400°C: 0.35. @600°C: 0.60 |
| Dielectric strength (IEC 60243) | 508 V/mil |
Techical Data
| Creep strength (DIN 52913) | 5800psi |
|---|
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
