NOMEX 410
Vulcanized paper

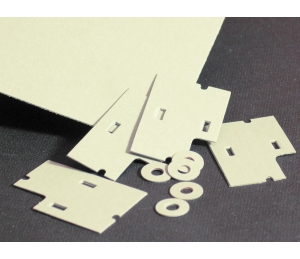

Designed as an electric insulation, the Nomex 410 is a synthetic paper that presents a good dielectric strength. It is compatible with all classes of resins, varnishes, glues, transformer liquids, lubricating oils and usual refrigeration agents. The Nomex 410 can be used in a majority of electrical equipment application. This vulcanised paper is available in many thiscknesses and dimensions. We can also cut the material according to your specifications.
Downloads
Applications
The Nomex 410 is used in almost every electrical sheet insulation application. Its application scope extends from DC to AC motors and generators, and also dry and oil cooled transformers.
Specifications
Electrical properties
| Dielectric resistance - AC rapid rise (ASTM D-149) | |
|---|---|
| Thickness of 0.25mm (0.010") | 32 kV/mm |
| Thickness of 0.38mm (0.015") | 33 kV/mm |
| Dielectric resistance - Full wave impulse (ASTM D-3426) | |
| Thickness of 0.25mm (0.010") | 63 kV/mm |
| Thickness of 0.38mm (0.015") | 55 kV/mm |
Thermal Properties
| Thermal conductivity at 150°C (mWatt/mK) | |
|---|---|
| Thickness of 0.25mm (0.010") | 139 |
| Thickness of 0.38mm (0.015") | 149 |
Mechanical properties
| Weight | |
|---|---|
| Thickness of 0.25mm (0.010") | 249 g/m² |
| Weight | |
| Thickness of 0.38mm (0.015") | 397 g/m² |
| Density (g/cc) | |
| Thickness of 0.25mm (0.010") | 0.96 |
| Thickness of 0.38mm (0.015") | 1.03 |
| Tensile strength (N/cm) | |
| Thickness of 0.25mm (0.010") | Machine direction: 285, Cross direction: 152 |
| Thickness of 0.38mm (0.015") | Machine direction: 459, Cross direction: 252 |
| Elongation (%) | |
| Thickness of 0.25mm (0.010") | Machine direction: 19, Cross direction: 15 |
| Thickness of 0.38mm (0.015") | Machine direction: 19, Cross direction: 14 |
| Elmendorf tear (N) | |
| Thickness of 0.25mm (0.010") | Machine direction: 6.0, Cross direction: 10.8 |
| Thickness of 0.38mm (0.015") | Machine direction: 9.5, Cross direction: 17.2 |
| Tear strenght (N) ASTM D-1004 | |
| Thickness of 0.25mm (0.010") | Machine direction: 71, Cross direction: 42 |
| Thickness of 0.38mm (0.015") | Machine direction: 116, Cross direction: 74 |
| Shrinkage at 300°C (%) | |
| Thickness of 0.25mm (0.010") | Machine direction: 0.4, Cross direction: 0.1 |
| Thickness of 0.38mm (0.015") | Machine direction: 0.3, Cross direction: 0.2 |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
